2FS-1 KIL

Name: 2FS-1 KIL
Brand: Killark
SKU: 2FS-1 KIL
Price: 55.59 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Killark

Manufacturer part number:

2FS-1

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 42 days

Estimated dates are contingent upon manufacturer stock.

$55.59 / EA

Description

Brand Name

Killark®

Type

Type FS Dead End Shallow

Alternate Supplier #

Grainger - 49ZX99

Description

F series device boxes accommodate wiring devices and provides opening to splice, tap or pull conductors. It provides access to conductors for maintenance and future system changes. Suitable for use in wet locations when used with gasket covers. All devices are offered in our copper-free aluminum with electro-statically applied powder coating. Some devices are configured for our tri-coat protected iron.

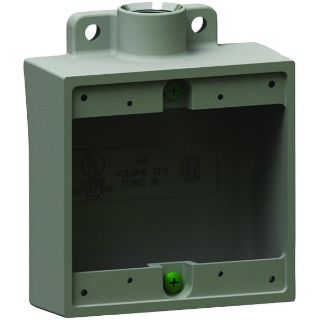

Killark®, 2FS-1, Cast Device Box, Type FS Dead End Shallow, Series: 2FS/FD, 2 Outlets, 2 Gangs, 1/2 in Hub, Tapered Threaded Hub, Hub Cable Entry, NEMA FB-1 Enclosure, Lug Mounting, 32 cu-in Capacity, Copper-Free Aluminum, Powder Coated, Gray, 5-1/2 in H x 4-11/16 in W x 2 in D Dimensions

Application

For providing access to conductors for maintenance and future system changes and open air cable routing

Standards

UL 514A File No. E3397 | CSA C22.2 No. 18 File No. LR11852 | NEMA FB-1 | Federal Specification No. W-C-586D | PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Features

Accommodates wiring devices and provides opening to splice, tap or pull conductors
Modular system easily configured
Tapered threads (NPT with integral bushings)
Internal grounding screw
Suitable for use in wet locations when used with gasket covers
Without knockout
Cast iron is suitable for concrete use
Electrostatically applied powder coated finish
1/2 in mounting hole

Specifications

Cable Entry Size:	Hub
Capacity:	32 cu-in
Color:	Gray
Country of Origin:	MX
Dimensions:	5-1/2 in H x 4-11/16 in W x 2 in D
Enclosure Type:	NEMA FB-1
Finish:	Powder Coated
Hub Size:	1/2 in
Hub Style:	Tapered Threaded
Material:	Copper-Free Aluminum
Mounting Type:	Lug
Number of Gangs:	2
Number of Outlets:	2
Series:	2FS/FD
