2GCBB-10Q2 KIL

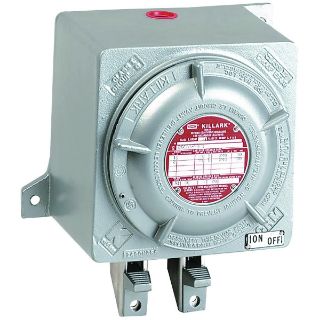

Picture of 2GCBB-10Q2 KIL
Actual Product May Vary From Image

Product Details

Manufacturer:
Killark
Manufacturer part number:
2GCBB-10Q2
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 25 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Killark®

Description

Killark® GCBB series of hazardous location circuit breaker loadcenters provide overcurrent and short circuit protection of service entrance, feeder or branch circuits, lighting, heating, appliance and motor circuits. Rated for indoor and outdoor applications, the copper free aluminum construction is ideal for harsh and hazardous environments. Circuit breaker configurations are available with various Eaton (Cutler Hammer) type QC quicklag breakers.
Killark® Circuit Breaker Loadcenter, Series: GCBB, 120/240 VAC, 10 A, 2 Poles, 60 Hz, 10 kA Interrupt, QC Quicklag Breaker, Feed-Through Breaker Mounting, Wall Mount, NEMA 3R/7/9, 6-7/8 x 6-7/8 in Enclosure Box, Aluminum Housing, 9-1/4 in H x 6-7/8 in W x 6-5/8 in D

Application

For indoor and outdoor hazardous areas where flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings may be present, provides overcurrent and short circuit protection of branch lighting, heating and appliance circuits

Standards

UL Listed | cULus File No. E83969 | Class I, Div 1, 2, Group B, C, D | Class I, Zone 1, 2, Group IIB+H2, IIA | Class II, Div 1, 2, Group E, F, G | Class III, Div 1, 2

Features

  • Compact rectangular enclosure with threaded cover allows easy access
  • Provided with (2) 3/4-14 NPT drilled and tapped conduit openings, (1) top and (1) bottom
  • Push pull handle mechanism operates circuit breakers
  • Handle mechanism supplied as standard with "Lockout" in OFF position
  • Enclosures are made from copper free cast aluminum alloy (<4/10 of 1%)

Specifications

Amperage Rating:10 A
Breaker Mounting:Feed-Through
Breaker Type:QC Quicklag
Country of Origin:US
Dimensions:9-1/4 in H x 6-7/8 in W x 6-5/8 in D
Enclosure Box Size:6-7/8 x 6-7/8 in
Enclosure Type:NEMA 3R/7/9
Frequency Rating:60 Hz
Housing Material:Aluminum
Interrupt Rating:10 kA
Mounting Type:Wall
Number of Poles:2
Series:GCBB
Voltage Rating:120/240 VAC
