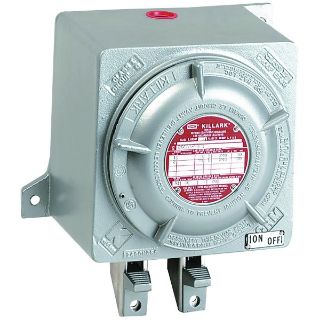

Actual Product May Vary From Image

2GCBB-40Q2 KIL

Name: 2GCBB-40Q2 KIL
Brand: Killark
SKU: 2GCBB-40Q2 KIL
Availability: OutOfStock

Killark® 2GCBB-40Q2 Circuit Breaker Loadcenter With (2) 2-Pole Cutler-Hammer Circuit Breakers, 120/240 VAC, 40 A, 2 Poles, 10 kA Interrupt

Manufacturer: Killark

Manufacturer part number: 2GCBB-40Q2

Availability: Expected Leadtime 25 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Killark®

Description

Killark® GCBB series of hazardous location circuit breaker loadcenters provide overcurrent and short circuit protection of service entrance, feeder or branch circuits, lighting, heating, appliance and motor circuits. Rated for indoor and outdoor applications, the copper free aluminum construction is ideal for harsh and hazardous environments. Circuit breaker configurations are available with various Eaton (Cutler Hammer) type QC quicklag breakers.

Killark® Circuit Breaker Loadcenter, Series: GCBB, 120/240 VAC, 40 A, 2 Poles, 60 Hz, 10 kA Interrupt, QC Quicklag Breaker, Feed-Through Breaker Mounting, Wall Mount, NEMA 3R/7/9, 6-7/8 x 6-7/8 in Enclosure Box, Aluminum Housing, 9-1/4 in H x 6-7/8 in W x 6-5/8 in D

Application

For indoor and outdoor hazardous areas where flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings may be present, provides overcurrent and short circuit protection of branch lighting, heating and appliance circuits

Standards

Features

Compact rectangular enclosure with threaded cover allows easy access
Provided with (2) 3/4-14 NPT drilled and tapped conduit openings, (1) top and (1) bottom
Push pull handle mechanism operates circuit breakers
Handle mechanism supplied as standard with "Lockout" in OFF position
Enclosures are made from copper free cast aluminum alloy (<4/10 of 1%)

Specifications

Amperage Rating:	40 A
Breaker Mounting:	Feed-Through
Breaker Type:	QC Quicklag
Country of Origin:	US
Dimensions:	9-1/4 in H x 6-7/8 in W x 6-5/8 in D
Enclosure Box Size:	6-7/8 x 6-7/8 in
Enclosure Type:	NEMA 3R/7/9
Frequency Rating:	60 Hz
Housing Material:	Aluminum
Interrupt Rating:	10 kA
Mounting Type:	Wall
Number of Poles:	2
Series:	GCBB
Voltage Rating:	120/240 VAC
