2MMV99118WN QUL TKN

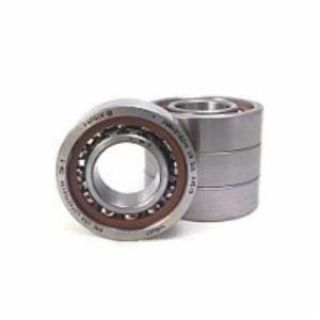

Picture of 2MMV99118WN QUL TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
2MMV99118WN QUL
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Timken®

Type

Light Duty

Alternate Supplier #

Applied Industrial Technologies - 102039847

Description

2MMV 99100WN are available with 15 deg initial contact angle and have been developed to operate under the demanding requirements of high-speed machine tools. They incorporate design features that permit operation at higher speeds than standard angular contact ball bearings. The bore, outside diameter and width are the same as the MM9100 Series.
Timken® Super Precision Angular Contact Ball Bearing, Light Duty, Series: 2MMV99100WN, 90 mm Bore Dia, 140 mm Outside Dia, 4 Rows, 24 mm Width, 15 deg Contact, 39000 N Dynamic/36100 N Static, 10400 rpm Maximum

Application

High Speed Internal Grinding Spindle, Ultra Precision Surface Grinding Spindle, Precision Surface Grinding Spindle, Heavy Duty Precision Boring Spindle, High Speed Precision Boring Head, Ultra Precision Grinding Workhead, Single Bar Machine, Precision Jig Boring Spindle, Super Precision Lathe Headstock, High Speed Motorized Router and Precision Vertical Milling Spindle

Standards

ABMA ABEC 7/9 Certified

Features

  • Single and double-row ball screw
  • Very high-speed
  • High accuracy and stiffness
  • Low operating temperature
  • Low noise and vibration
  • Angular contact low shoulder on both inner and outer-ring

Specifications

Bore Diameter:90 mm
Contact Angle:15 deg
Load Capacity:39000 N Dynamic/36100 N Static
Maximum Speed:10400 rpm
Number of Rows:4
Outside Diameter:140 mm
Series:2MMV99100WN
Width:24 mm

Products Specifications

Bore Size
90 mm
Brand Name
Timken
