2SC-125 ILS

Name: 2SC-125 ILS
Brand: Ilsco Corporation
SKU: 2SC-125 ILS
Availability: OutOfStock

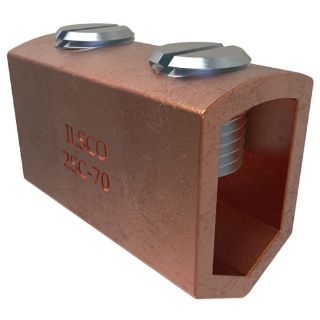

Actual Product May Vary From Image

Product Details

Manufacturer:

Ilsco Corporation

Manufacturer part number:

2SC-125

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

ILSCO®

Type

Type 2SC

Description

ILSCO® ClearChoice® Splicer/Reducer, Type 2SC, Copper Conductor, 1/0 to 2/0 AWG Conductor, 2 Number of Screws, 2000 VAC, Slotted Hex, Slotted Hex Head Screw, 90 deg C, Copper, Electrolytic, 1.266 in L x 0.611 in W x 0.8125 in H

Application

For light duty applications

Standards

UL 486A/486B/453G File No. E6207 | PROP65: it is not known to contain any chemicals associated with this regulation

Features

Manufactured from electrolytic seamless copper tubing provides maximum conductivity and strength
Compact design saves space and reduces installation time
Range taking for reduced inventories and flexibility and permits inventories to be kept to a minimum
Re-usable
Provides efficient use and flexibility in the field
V-bottom collar with serrations
Wires are held securely between set screws and V-bottom providing superior pullout strength
Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
Application versatility
For copper conductor only

Specifications

Conductor Size:	1/0 to 2/0 AWG
Conductor Type:	Copper
Country of Origin:	MX
Dimensions:	1.266 in L x 0.611 in W x 0.8125 in H
Finish:	Electrolytic
Material:	Copper
Number of Screws:	2
Specifications:	Slotted Hex, Slotted Hex Head Screw
Temperature Rating:	90 deg C
Voltage Rating:	2000 VAC
