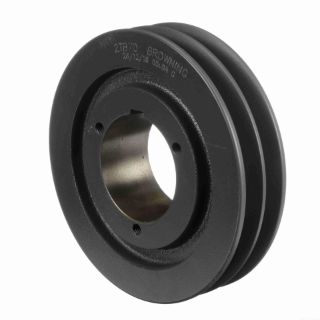

Actual Product May Vary From Image

2TB70 BRN

Name: 2TB70 BRN
Brand: Regal Rexnord
SKU: 2TB70 BRN
Price: 162.53 USD
Availability: OutOfStock

Browning® 1002278 TB Series Type 13 Web Multiple Sheave With Split Taper Bushing, 3/4 to 2-11/16 in Split Taper Bore, 7.35 in OD, 2 Grooves, 6.8 in (A)/7.3 in (B) Dia Pitch, 1-3/4 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 1002278

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$162.53

Qty:

Product Details

Brand Name

Browning®

Type

Type 13 Web

Alternate Supplier #

Applied Industrial Technologies - 100784707
Motion Industries - 00730775

Description

Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Type 13 Web, Series: TB Series, Split Taper Bore, 3/4 to 2-11/16 in Bore Dia, 7.35 in Outside Dia, 6.8 in (A)/7.3 in (B), 2 Grooves, 1-3/4 in Face Width, 27/32 in Hub Projection, Q1 Bushing, 2-53/64 in Overall Length, For Use With: Gripbelt® A and B Cross Section Belts, Cast Iron

Application

Aerospace, Aggregates. Mining and Cement, Alternative Energy, Food and Beverage, Forest Products, Grain, HVAC, Marine, Oil and Gas, Petrochemical, Plastics, Power Generation, Primary Metals, Pulp and Paper Industries

Features

Incorporates Browning® split taper bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
Combination groove all Browning® B sheaves permit the running of A and B belts to be run in them
Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible

Specifications

Bore Diameter:	3/4 to 2-11/16 in
Bore Type:	Split Taper
Bushing Type:	Q1
Country of Origin:	MX
Face Width:	1-3/4 in
Hub Projection:	27/32 in
Material:	Cast Iron
Number of Grooves:	2
Outside Diameter:	7.35 in
Overall Length:	2-53/64 in
Pitch Diameter:	6.8 in (A)/7.3 in (B)
Series:	TB Series
Suitable For Use With:	Gripbelt® A and B Cross Section Belts
