2VP84X 1 7/8 BRN

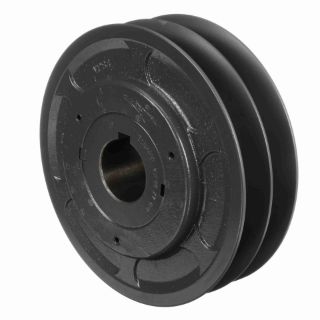

Picture of 2VP84X 1 7/8 BRN
Actual Product May Vary From Image

Product Details

Manufacturer:
Regal Rexnord
Manufacturer part number:
2777647
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$657.14 / EA

Description

Brand Name

Browning®

Description

Browning® variable pitch design offers pitch diameter ranges 3.4 - 8.5 in to 25 hp. Unique manufacturing design ensures precise adjustability, balance and unmatched performance. Browning® variable pitch sheaves help reduce vibration by having a robust casting ribbed design that helps improve balance and heat dissipation. These sheaves offer tight thread tolerances for superior performance. 1 and 2 groove sheaves will accept the widest range of belts of any manufacturer 3L, 4L, A, AX, 5L, B, BX, 5V and 5VX.
Browning® FHP Variable Pitch Sheave, Series: 2VP, Finished Bore, 1-7/8 in Bore, 8-1/2 in OD, 6.9 to 7.9 in (A)/7.2 to 8.4 in (B)/8.4 to 7.2 in (5V) Pitch Diameter, 2 Grooves, 1-5/8 to 2-3/8 in Face Width, 3.3 in Overall Length, For Use With: GripBelt® A and B, 5V Cross Section Belts, Cast Iron

Application

Aggregate, Cement, Agriculture, Coal Power Generation, Forestry, HVAC, Minerals, Mining, Packaging Machinery, Pulp, Paper and Unit Handling Industries

Features

  • Largest selection in the Industry Browning® offers the widest range of variable speed sheaves in the market today
  • Light duty applications up to 25 hp
  • One and two Groove product are available in 1.6 in to 8.5 in covering up to 25 horsepower
  • VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore
  • The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
  • When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed

Specifications

Bore Diameter:1-7/8 in
Bore Type:Finished
Country of Origin:MX
Face Width:1-5/8 to 2-3/8 in
Material:Cast Iron
Number of Grooves:2
Outside Diameter:8-1/2 in
Overall Length:3.3 in
Pitch Diameter:6.9 to 7.9 in (A)/7.2 to 8.4 in (B)/8.4 to 7.2 in (5V)
Series:2VP
Suitable For Use With:GripBelt® A and B, 5V Cross Section Belts
