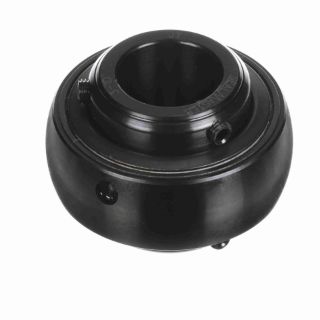

3-13D SMT

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Ball Bearing Insert, Medium Duty Non-Expansion Straight Bore, 1.188 in Bore, 2.835 in OD, 2 in Width, Double Seal Closure, 5782 lb Dynamic/3493 lb Static Load, Steel Bearing, Felt Seal, Brass Cage, 6500 rpm Maximum, 250 deg F, Black Oxide Coated
