3-17D SMT

Name: 3-17D SMT
Brand: Regal Rexnord
SKU: 3-17D SMT
Availability: OutOfStock

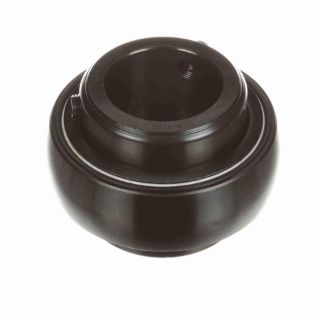

Sealmaster® 702048 Medium Duty Non-Expansion Straight Bore Ball Bearing Insert With Seal Flinger, 1.438 in Dia Bore, 3.15 in OD, 2.313 in W, 7340 lb Dynamic/4467 lb Static Load

Manufacturer: Regal Rexnord

Manufacturer part number: 702048

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Sealmaster®

Type

Medium Duty Non-Expansion Straight Bore

Description

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Ball Bearing Insert, Medium Duty Non-Expansion Straight Bore, 1.438 in Bore, 3.15 in OD, 2.313 in Width, Double Seal Closure, 7340 lb Dynamic/4467 lb Static Load, Steel Bearing, Felt Seal, Brass Cage, 5850 rpm Maximum, 250 deg F, Black Oxide Coated

Application

Aggregate, Cement, Forestry, HVAC, Metals, Packaging Machinery, Unit Handling, Minerals and Mining Industries

Standards

ABMA Standard

Features

Double setscrew locking
Lithium complex NLGI #2 grease with an EP additive
Zone hardened inner race
Wide outer race
Lock pin and dimple system
Land riding retainer
Metal nameplate riveted to the housing allows for easy identification even after years of operation

Specifications

Bearing Material:	Steel
Bore Diameter:	1.438 in
Cage Material:	Brass
Closure Type:	Double Seal
Country of Origin:	MX
Finish:	Black Oxide Coated
Load Capacity:	7340 lb Dynamic/4467 lb Static
Maximum Speed:	5850 rpm
Outside Diameter:	3.15 in
Seal Material:	Felt
Temperature Rating:	250 deg F
Width:	2.313 in
