Actual Product May Vary From Image

3-27DC SMT

Name: 3-27DC SMT
Brand: Regal Rexnord
SKU: 3-27DC SMT
Availability: OutOfStock

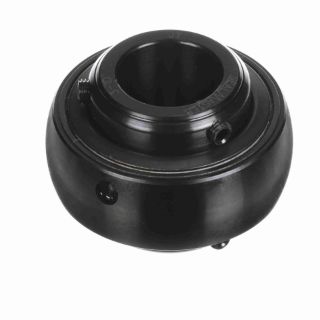

Sealmaster® 702441 Medium Duty Non-Expansion Straight Bore Ball Bearing Insert, 2.438 in Dia Bore, 4.921 in OD, 3-1/2 in W, 13971 lb Dynamic/10063 lb Static Load

Manufacturer: Regal Rexnord

Manufacturer part number: 702441

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Sealmaster®

Type

Medium Duty Non-Expansion Straight Bore

Description

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Ball Bearing Insert, Medium Duty Non-Expansion Straight Bore, 2.438 in Bore, 4.921 in OD, 3-1/2 in Width, Double Seal Closure, 13971 lb Dynamic/10063 lb Static Load, Steel Bearing, Nitrile Rubber Seal, Brass Cage, 2250 rpm Maximum, 250 deg F, Black Oxide Coated

Application

Aggregate, Cement, Forestry, HVAC, Metals, Packaging Machinery, Unit Handling, Minerals and Mining Industries

Standards

ABMA Standard

Features

Double setscrew locking
Contact seal type
Lithium complex NLGI #2 grease with an EP additive
Zone hardened inner race
Wide outer race
Lock pin and dimple system
Land riding retainer
Metal nameplate riveted to the housing allows for easy identification even after years of operation
Without seal flinger

Specifications

Bearing Material:	Steel
Bore Diameter:	2.438 in
Cage Material:	Brass
Closure Type:	Double Seal
Country of Origin:	US
Finish:	Black Oxide Coated
Load Capacity:	13971 lb Dynamic/10063 lb Static
Maximum Speed:	2250 rpm
Outside Diameter:	4.921 in
Seal Material:	Nitrile Rubber
Temperature Rating:	250 deg F
Width:	3-1/2 in
