30-1262J IDE

Name: 30-1262J IDE
Brand: Ideal Industries
SKU: 30-1262J IDE
Price: 1.37 USD
Availability: OutOfStock

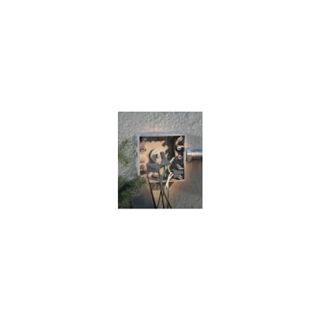

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

30-1262J

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$1.37 / EA

Description

Brand Name

IDEAL®

Alternate Supplier #

Grainger - 21GR22

Description

WEATHERPROOF® wire connectors are the perfect twist-on solution for connections that require protection from the elements. The swept wing design makes the connector easy and comfortable to apply, while the pre-filled, silicone based sealant protects against moisture and corrosion, eliminating the need for heat shrink or excessive taping.

IDEAL® WEATHERPROOF® Wire Connector, Series: 62® Series, Winged Shell Style, Live Action/Square Wire Spring, Solid/Stranded Copper Wire, 18 to 8 AWG Wire, 600 VAC, Specifications: 1/2 in Wire Strip, (2) 18 AWG Minimum, (3) 10 AWG Maximum Conductor Combination Size, 105 deg C, Thermoplastic Polyester, Gray, 0.68 in Dia x 0.9375 in W x 1.34375 in H Dimensions

Application

Automatic Carwashes, Basement, Bathroom or Spa Vent Fans, Car Port Circuits, Garage, Decorative Patio and Deck Lighting, Exterior Area, Security Lighting, Industrial Hosedown or Washdown, Marine Shore Power and Dock Lighting, Outdoor Power Outlets, Outdoor Signage and Traffic Signal Control Circuits Applications

Standards

Features

100% silicone based sealant protects against moisture and corrosion
Easy to apply, pre-filled twist-on wire connectors
Swept wing design is built for comfort and efficiency
Eliminates the need for heat shrink or excessive taping
Sealed Twist-On Wire Connector for use in damp/wet locations or above-grade applications
Tough, UL 94V-2 flame-retardant shell rated at 105 deg C (221 deg F)Models 61 and 63 approved for bonding and grounding applications
Designed specifically for above-grade, interior or exterior connections exposed to damp, wet or corrosive environments, WeatherProof Wire Connectors are the perfect twist-on solution for connections that require protection from the elements

Specifications

Color:	Gray
Country of Origin:	US
Dimensions:	0.68 in Dia x 0.9375 in W x 1.34375 in H
Material:	Thermoplastic Polyester
Series:	62® Series
Shell Style:	Winged
Specifications:	1/2 in Wire Strip, (2) 18 AWG Minimum, (3) 10 AWG Maximum Conductor Combination Size
Spring Type:	Live Action/Square Wire
Temperature Rating:	105 deg C
Voltage Rating:	600 VAC
Wire Size:	18 to 8 AWG
Wire Type:	Solid/Stranded Copper
