30-151 IDE

Name: 30-151 IDE
Brand: Ideal Industries
SKU: 30-151 IDE
Price: 0.18 USD
Availability: OutOfStock

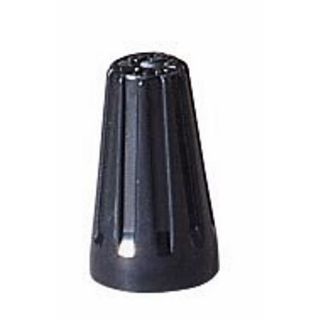

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

30-151

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$0.18 / EA

Description

Brand Name

IDEAL®

Type

High Temperature

Alternate Supplier #

Grainger - 25A376

Description

IDEAL®, 30-151, Wire Connector, High Temperature, Series: 74B®, Positive Grip Shell Style, Fixed/Square Wire Spring, Solid/Stranded Copper Wire, 22 to 16 AWG Wire, 300 VAC, Specifications: 2 to 4 Conductors, 18 to 2 AWG Mininum, 10 to 4 AWG Maximum Conductor Combination Size, 302 deg F, Thermoplastic Polyester, Black, 37/64 in H x 21/64 in W Dimensions

Application

For insulating or joining two or more conductors in conditions where extreme heat build-up occurs such as high wattage fixtures and signs

Standards

RoHS Compliant | C22.2 No. 188 | Federal Specification W-S-610E | UL 94V-0 Flammability Rating | UL 486C Listed

Features

Black, thermoplastic shell designed to withstand extreme heat build-up found in high-wattage light fixtures and signs
Designed to withstand up to 150 deg C temperatures
Fixed, square-wire spring for a grip that will last
Refined range to handle all common applications; Excellent for fine stranded wire applications
Positive grip shell that is comfortable to twist-on with fingers

Specifications

Color:	Black
Country of Origin:	US
Dimensions:	37/64 in H x 21/64 in W
Material:	Thermoplastic Polyester
Series:	74B®
Shell Style:	Positive Grip
Specifications:	2 to 4 Conductors, 18 to 2 AWG Mininum, 10 to 4 AWG Maximum Conductor Combination Size
Spring Type:	Fixed/Square Wire
Temperature Rating:	302 deg F
Voltage Rating:	300 VAC
Wire Size:	22 to 16 AWG
Wire Type:	Solid/Stranded Copper
