30-174 IDE

Name: 30-174 IDE
Brand: Ideal Industries
SKU: 30-174 IDE
Price: 0.20 USD
Availability: OutOfStock

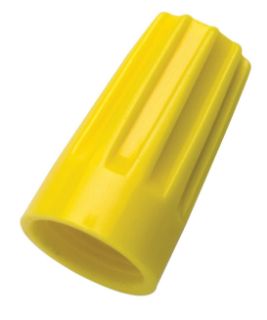

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

30-174

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$0.20 / EA

Description

Brand Name

IDEAL®

Type

Flame-Retardant

Alternate Supplier #

Grainger - 25A384

Description

IDEAL®, 30-174, Wire Connector, Flame-Retardant, Series: 74B®, Positive Grip Shell Style, Fixed/Square Wire Spring, Solid/Stranded Copper Wire, 18 to 12 AWG Wire, 600 VAC, Specifications: 7/16 in Solid, 3/8 in Stranded Wire Strip, 2 to 4 Conductors, 18 to 2 AWG Minimum, 14 to 4 AWG with 18 to 1 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Yellow, Zinc Plated, 35/64 in W x 61/64 in H Dimensions

Application

For insulating or joining two or more conductor

Standards

CSA C22.2 No. 188 | Federal Specification W-S-610E | RoHS Compliant | UL 486C | UL94 V-2 Flammability Rating

Features

Fixed, square wire spring creates its own threads maintains a secure positive grip that will not relax over time
No pre-twisting required, positive grip design provides fast and easy installation
Deep skirt helps protect against flash over and turned back strands for maximum dielectric protection
Reusable for easy circuit changes and additions
For tough environmental conditions

Specifications

Color:	Yellow
Country of Origin:	US
Dimensions:	35/64 in W x 61/64 in H
Finish:	Zinc Plated
Material:	Polypropylene
Series:	74B®
Shell Style:	Positive Grip
Specifications:	7/16 in Solid, 3/8 in Stranded Wire Strip, 2 to 4 Conductors, 18 to 2 AWG Minimum, 14 to 4 AWG with 18 to 1 AWG Maximum Conductor Combination Size
Spring Type:	Fixed/Square Wire
Temperature Rating:	221 deg F
Voltage Rating:	600 VAC
Wire Size:	18 to 12 AWG
Wire Type:	Solid/Stranded Copper
