30-3629 IDE

Name: 30-3629 IDE
Brand: Ideal Industries
SKU: 30-3629 IDE
Price: 0.30 USD
Availability: OutOfStock

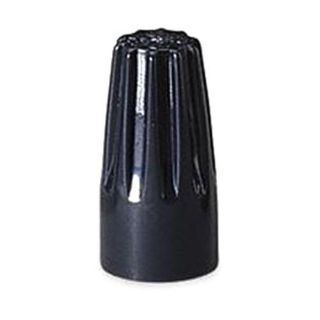

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

30-3629

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$0.30 / EA

Description

Brand Name

IDEAL®

Type

High Temperature

Alternate Supplier #

Grainger - 6VG17

Description

WIRE-NUT® is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The WIRE-NUT® also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.

IDEAL®, 30-3629, Wire Connector, High Temperature, Series: 74B®, Positive Grip Shell Style, Fixed/Square Wire Spring, Solid/Stranded Copper Wire, 22 to 14 AWG Wire, 600 VAC, Specifications: 3/8 in Solid, 5/16 in Stranded Wire Strip, 1 to 5 Conductors, 18 to 1 AWG Minimum with 20 to 1 AWG, 16 to 4 AWG with 20 to 1 AWG Maximum Conductor Combinational Size, 302 deg F, Thermoplastic Polyester, Black, 55/64 in H x 7/16 in W Dimensions

Application

For insulating or joining two or more conductors in conditions where extreme heat build-up occurs such as high wattage fixtures and signs

Standards

RoHS Compliant | C22.2 No. 188 | Federal Specification W-S-610E | UL 94V-0 Flammability Rating | UL 486C Listed

Features

Welded one-piece spring/shell for added reliability
Black, thermoplastic shell specially designed to withstand the extreme heat build-up commonly found in high-wattage light fixtures and signs
Fixed, square wire spring creates its own threads-maintains a secure positive grip that will not relax over time
No pre twisting required, positive grip design provides fast, easy installation
Deep skirt helps protect against flash-over
Reusable for easy circuit changes and additions
For tough environmental conditions
Designed to withstand up to 150 deg C temperatures
Refined range to handle all common applications; Excellent for fine stranded wire applications
Positive grip shell that is comfortable to twist-on with fingers

Specifications

Color:	Black
Country of Origin:	US
Dimensions:	55/64 in H x 7/16 in W
Material:	Thermoplastic Polyester
Series:	74B®
Shell Style:	Positive Grip
Specifications:	3/8 in Solid, 5/16 in Stranded Wire Strip, 1 to 5 Conductors, 18 to 1 AWG Minimum with 20 to 1 AWG, 16 to 4 AWG with 20 to 1 AWG Maximum Conductor Combinational Size
Spring Type:	Fixed/Square Wire
Temperature Rating:	302 deg F
Voltage Rating:	600 VAC
Wire Size:	22 to 14 AWG
Wire Type:	Solid/Stranded Copper
