Home / 30-372 IDE

30-372 IDE

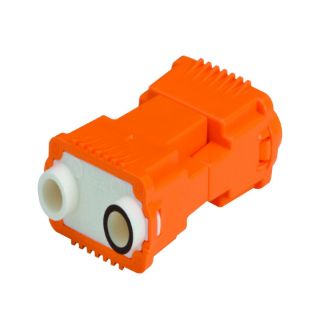

Picture of 30-372 IDE
Actual Product May Vary From Image

Product Details

Manufacturer:
Ideal Industries
Manufacturer part number:
30-372
CBT Inventory
175
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
175
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
175 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2.78 / EA

Description

Brand Name

IDEAL®

Type

2-Wire Standard

Alternate Supplier #

Grainger - 1TPG6

Description

The PowerPlug® luminaire disconnect features patented IDEAL® push-in technology that quickly locks wires in place. It helps reduce electrical shock hazard during luminaire replacement by safely disconnecting the wiring while offering additional safety since both halves meet UL and CSA finger probe safety requirements. The entire family easily fits through 1/2 in knockouts for quick installation.
IDEAL® PowerPlug® Luminaire Disconnect, 2-Wire Standard, 18 to 12 AWG Wire, 1.4 in Overall Length, 2 Ports, 600 VAC, Push-In Connection, Copper Alloy Connection, Specifications: 3/8 to 1/2 in L Strip, 6 A Current Rating, 3 lb Insertion Force, 10 Cycles Current Interruption, 221 deg F, Nylon, Orange, Tin Plated, 0.5 in W x 0.81 in H Dimensions

Application

For 1-ballast fixture new installation and retrofit application

Standards

CEC 30-308(4) | CSA C22.2 No. 182.3 | NEC 2008 410.130(G) | RoHS Compliant | UL 2459 | UL94 V-0 Flammability Rating

Features

  • Patented design allows for safe mating and demating of connector
  • Industry leading connector for LED retrofit kits
  • Both halves are touch safe per UL 2459
  • Push-in technology results in quicker connections, saving time and increasing productivity
  • Meets the new NEC and CEC code changes for non-residential fluorescent luminaires
  • Perfect for new, retrofit or OEM lighting installations
  • Allows safe disconnect of hot and neutral ballast wiring
  • Pieces pull apart safely and easily
  • Low profile design
  • 18 to 12 AWG solid, 14 to 12 AWG (19 strand or less) stranded, 12 AWG (19 strand or less), 14 AWG (19 strand or less), 16 AWG (26 strand or less), 18 AWG (16 strand or less) tin bonded wire range
  • Colour-coded ends ballast side (white) and line side (orange)
  • Fits through 1/2 in knockout

Specifications

Color:Orange
Connection Material:Copper Alloy
Connection Type:Push-In
Country of Origin:CN
Dimensions:0.5 in W x 0.81 in H
Finish:Tin Plated
Material:Nylon
Number of Ports:2
Overall Length:1.4 in
Specifications:3/8 to 1/2 in L Strip, 6 A Current Rating, 3 lb Insertion Force, 10 Cycles Current Interruption
Temperature Rating:221 deg F
Voltage Rating:600 VAC
Wire Size:18 to 12 AWG
