30-451 IDE

Name: 30-451 IDE
Brand: Ideal Industries
SKU: 30-451 IDE
Price: 0.25 USD
Availability: InStock

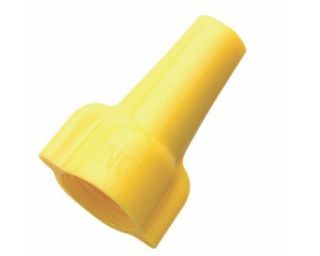

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

30-451

product.name:

30-451 IDE

CBT Inventory

900

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$0.25 / EA

Description

Brand Name

IDEAL®

Type

Flame-Retardant

Alternate Supplier #

Grainger - 6YH58

Description

The Wing-Nut® wire connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions. The Wing-Nut® also features a tough, copolymer, flame retardant shell that withstands environmental extremes with a deep skirt that provides maximum dielectric protection to prevent flash over and turned back strands.

IDEAL® Wing-Nut® Wire Connector, Flame-Retardant, Series: 451®, Winged Shell Style, Live Action/Square Wire Spring, Solid/Stranded Wire, 18 to 10 AWG Wire, 600 VAC, Specifications: 3/8 in Solid/Stranded Wire Strip, 1 to 6 Conductors, 18 to 2 AWG Minimum, 12 to 3 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Yellow, Zinc Plated, 0.48 in Dia x 1.015625 in W x 0.6875 in H Dimensions

Application

For insulating or joining two or more conductor and wire termination/connection

Standards

CSA C22.2 No. 188 | Federal Specification W-S-610E | RoHS Compliant | UL 486C | UL94 V-2 Flammability Rating

Features

Specially designed contoured wings provide a secure grip for extra leverage on maximum wire combinations
Live action spring expands to accept wire shape and size
No pre-twisting required
Deep skirt helps protect against flash over and turned back strands for maximum dielectric protection
For tough environmental conditions
Square wire spring threads directly onto conductors for fast and secure connections
High-leverage, contoured wing provides superior torque on every twist
Wide range, live-action spring handles small combinations and expands to accommodate large combinations as you need it
Copolymer shell expands for smooth, progressive tightening providing dependable connections
Removable for repeat usage on same size or larger combinations

Specifications

Color:	Yellow
Country of Origin:	US
Dimensions:	0.48 in Dia x 1.015625 in W x 0.6875 in H
Finish:	Zinc Plated
Material:	Polypropylene
Series:	451®
Shell Style:	Contoured Winged/Twist On
Specifications:	3/8 in Solid/Stranded Wire Strip, 1 to 6 Conductors, 18 to 2 AWG Minimum, 12 to 3 AWG Maximum Conductor Combination Size
Spring Type:	Live Action/Square Wire
Temperature Rating:	221 deg F
Voltage Rating:	600 VAC
Wire Size:	18 to 10 AWG
Wire Type:	Solid/Stranded
