300Q56L20 MOR

Raider® Plus worm gear reducers represent the most flexible worm gear product in the power transmission solutions portfolio. With a large variety of add-on accessories, the Raider® Plus line of worm gear reducers is a problem solver. Four unit styles form the basis of this vast product offering. These are the universal style (U style, shaft input) with an output shaft and the C-face style (Q style, input quill) with an output shaft. Both the U and Q styles are also available with hollow outputs. The Raider® Plus worm gear reducer is designed as an industry interchange. It is dimensionally interchangeable with the major industry competitors.

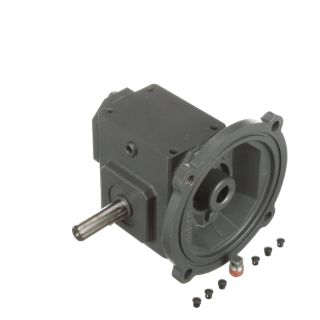

Morse® Raider® Plus Worm Gear Reducer, Single Reduction Standard, 20:1 Gear Ratio, 1 hp, C-Face Quilled Input, Left Hand Output, 5/8 in Dia Input, 1.25 in Dia x 3.6 in L Output, 87.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 142.26 in-lb Input/87.5 in-lb Output, 3 in Centre Distance, 0.1875 x 1.63 in Input Keyway, Polyglycol Oil Lubrication, Direct/Floor Mount, Cast Iron, 10.79 in L x 10.14 in W
