3020 40MM MSG

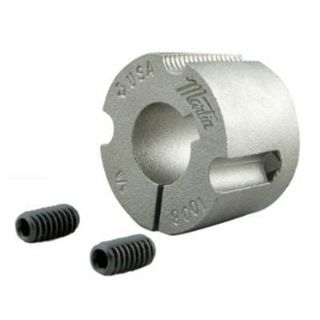

Picture of 3020 40MM MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
3020 40MM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$64.22 / EA

Description

Brand Name

Martin

Description

Martin Taper Lock Bushing, 40 mm Bore Dia, 4-1/4 mm Barrel Dia, 5-5/8 in Hub Dia, 8 deg Taper, 4 in Bolt Circle, 2 Bolt Holes, 5/8-11 x 1-1/4 in Screw, 24000 in-lb, 2 in Overall Length, 12 x 3.3 mm Keyway, Steel

Standards

ANSI B15.1

Features

  • Size 3020 bushing
  • TB Bushings are designed for flush mounting and do not have a flange
  • Tolerances meet or exceed industry standards
  • Precise machining and processes ensure consistent finish and high quality
  • Interchangeable with other manufacturers’ taper bushings

Specifications

Barrel Diameter:4-1/4 in
Bolt Circle Diameter:4 in
Bore Diameter:40 mm
Country of Origin:US
Hub Diameter:5-5/8 in
Keyway Size:12 x 3.3 mm
Material:Steel
Number of Bolt Holes:2
Overall Length:2 in
Screw Size:5/8-11 x 1-1/4 in
Taper:8 deg
Torque Rating:24000 in-lb

Products Specifications

Bore Size
40 mm
Brand Name
Martin Sprocket & Gear
Bushing Series
3020
Measuring Units
Metric
Type
Tapered Bushing
