3020 75MM AD

Name: 3020 75MM AD
Brand: IDC-USA
SKU: 3020 75MM AD
Price: 70.84 USD
Availability: OutOfStock

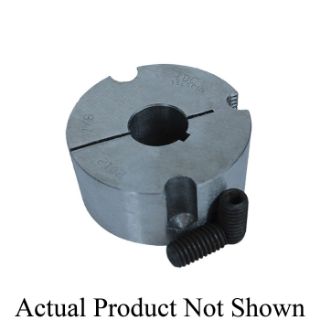

Actual Product May Vary From Image

Product Details

Manufacturer:

IDC-USA

Manufacturer part number:

IDC 3020-75MM

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$70.84 / EA

Description

Brand Name

IDC Select®

Type

Finished Bore

Description

IDC Select® bushings are available in H, QD®, Taper-Lock®, and Split Taper™ designs and are available in inch and metric sizes. They are stocked in popular finished bore sizes. All IDC Select® bushings are fully interchangeable with industry standard design.

IDC Select® Taper-Lock® Bushing, Finished Bore, 75 mm Bore Dia, 4-1/4 in Barrel Dia, 8 deg Taper, 4 in Bolt Circle, 5/8-11 UNC Screw, 90 N/sq-m, 2 in Overall Length, 20 x 4.9 mm Keyway, Nodular Graphite Cast Iron

Application

Air Handling, Mining, Wood Process, Agriculture, Aggregate, Oilfield, Air Compressor and Standard Industrial Applications

Standards

ANSI Specified | ASTM A536/A536-84 | SAE Standard

Features

Flush mount - clean and compact
Easy installation and dismount
8 deg taper - fits equivalent to shrink fit
Globally accepted
Keystock provided with shallow key sizes
3020 Taper-Lock® bushing

Includes

8 mm Hex Setscrew

Specifications

Barrel Diameter:	4-1/4 in
Bolt Circle Diameter:	4 in
Bore Diameter:	75 mm
Keyway Size:	20 x 4.9 mm
Material:	Nodular Graphite Cast Iron
Overall Length:	2 in
Screw Size:	5/8-11 UNC
Taper:	8 deg
Torque Rating:	90 N/sq-m
