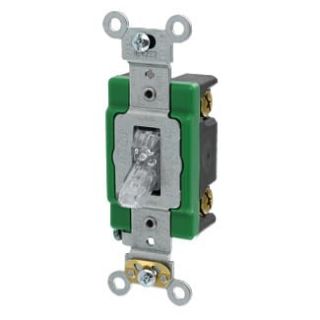

Picture of 3031-PLC LEV
Actual Product May Vary From Image

3031-PLC LEV

Leviton® 3031-PLC Extra Heavy Duty AC Quiet Toggle Switch, 120 VAC, 30 A, SP Contact
Manufacturer: Leviton Manufacturing
Manufacturer part number: 3031-PLC
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Leviton®

Type

Extra Heavy Duty

Alternate Supplier #

Grainger - 25NA22

Description

Leviton's industrial grade AC toggle switches for extra heavy duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Leviton® AC Quiet Toggle Switch, Extra Heavy Duty, 120 VAC, 30 A, SP Contact Configuration, 2 hp at 120 VAC Contact, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, Thermoplastic, Clear, Environmental Conditions: -40 to 65 deg C Operating Temperature, 4.06 in H x 1.31 in W x 1.6 in D Dimensions

Application

Commercial Applications

Standards

ANSI C-73 | CSA C22.2 No. 111 | CSA File No. 152105 | NEMA WD-1/WD-6 | WD-6 Standard | NOM 057 Certified | RoHS Compliant | UL File No. E7458 | UL Federal Specification W-S-896-E | UL 20

Features

  • Pilot light switches provide top performance in punishing industrial applications
  • Pilot light toggle illuminated when load is ON
  • Fully enclosed switch mechanism in rugged housing for strength, track and arc resistance
  • Self-grounding clip (self grounding when used with a grounded metal wall box)

Specifications

Actuator:Toggle
Amperage Rating:30 A
Color:Clear
Contact Configuration:SP
Contact Rating:2 hp at 120 VAC
Country of Origin:MX
Dimensions:4.06 in H x 1.31 in W x 1.6 in D
Enclosure:NEMA WD-1/WD-6
Environmental Conditions:-40 to 65 deg C Operating Temperature
Material:Thermoplastic
Mounting:Surface
Number of Poles:1
Power Rating:2 hp
Terminal Type:Back/Side Wire
Voltage Rating:120 VAC
