3038DCTNTG18 RBC

Semi-ground 3000® Series bearings are specially designed to provide a line of economical bearings for lighter loads than the 1600® Series bearings and speeds to approximately 2500 rpm. The 3000® Series bearings are dimensionally the same as the 1600® Series bearings, except for the precision of the inner ring (as machined tolerances). Careful heat treatment provides a uniform and exact degree of hardness for maximum life. The 3000® Series bearings are precision ground to the same close tolerances on the OD as the 1600® Series bearings with exceptional care given to the ball grooves. A ball retainer, or separator, is employed to increase the range of allowable speeds by reducing ball contact friction.

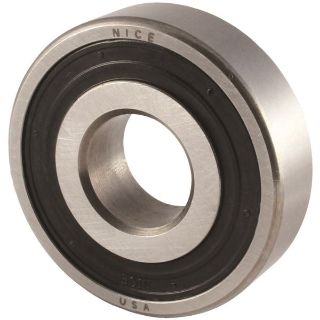

Nice® Precision Deep Groove Ball Bearing, Filling Slot, Series: 3000®, 3/4 in Bore, 2 in OD, 1 Rows, 9/16 in Width, Double Seal Closure, 1350 lb Load, 52100 Steel Bearing, Nylon Cage, 2500 rpm Maximum, 300 deg F, Chrome Steel
