3048-8MGT-20 GAT

GT3 3048-8MGT-20
Manufacturer: Gates
Manufacturer part number: 93560081
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$145.86

Product Details

Brand Name

Gates®

Alternate Supplier #

3048-8MGT-20

Description

Reduce both acquisition costs and transaction costs by designing with PowerGrip GT3. The PowerGrip GT3 belt has two times the rating of competitive RPP belts, and its predecessors PowerGrip GT and HTD belts. PowerGrip GT3 drive systems offer the largest selection of belts and sprockets in the industry. At reduced widths, PowerGrip GT3 belts can be used as a direct replacement for most 8mm and 14mm pitch standard rubber RPP and HTD synchronous belts.

Application

HVAC, Textile, Printing, Machine Tools, Food Processing, Conveyors, Packaging, Agriculture, Pumps, Compressors, Centrifuges, Laundry, Pulp and Paper

Standards

ISO 9563

Features

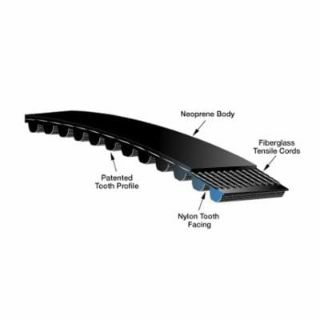

  • Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
  • Nylon tooth facing provides a durable wear surface for long service life
  • Gates® patented tooth profile is designed for use with a specific sprocket groove profile
  • The sprocket groove-belt tooth combinations increases capacity, while improving registration
  • Eliminates lubrication and re-tensioning to reduce maintenance and labor as compared to roller chain drives
  • A single twist cord helps prevent the belt from moving downward on vertical shaft ACHE applications
  • Neoprene body provides protection against grime, grease, oil and moisture
  • PowerGrip® GT®3 has more tooth ratchet resistance than HTD®

Specifications

Material:Neoprene
Number of Teeth:381
Overall Length:3048 mm
Pitch:8 mm
Reinforced Material:Fiberglass
Series:9356
Width:20 mm
