Actual Product May Vary From Image

305-5M-15 GAT

Name: 305-5M-15 GAT
Brand: Gates
SKU: 305-5M-15 GAT
Price: 20.06 USD
Availability: OutOfStock

305-5M-15

Manufacturer: Gates

Manufacturer part number: 929332031

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$20.06

Qty:

Product Details

Brand Name

Gates®

Alternate Supplier #

305-5M-15

Description

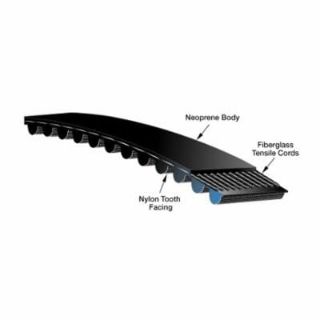

PowerGrip HTD belts have a larger, more robust tooth profile for increased capacity, as compared to timing belts.

Application

Data Storage, Hand Power Tools, Postage Handling, Food Processors, Office Machines, Centrifuges, Money Handling, Medical Diagnostic, Sewing Machines, Ticket Dispensers, Robotics, Vending Machines and Vacuum Cleaners

Standards

RMA Standard

Features

Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
Nylon tooth facing provides a durable wear surface for long service life
Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives
Neoprene body provides protection against grime, grease, oil and moisture
Thirty percent increase in horsepower ratings, as compared to traditional timing belts

Specifications

Material:	Neoprene
Number of Teeth:	61
Overall Length:	305 mm
Pitch:	5 mm
Reinforced Material:	Fiberglass
Series:	9293
Temperature Range:	-30 to 180 deg F
Tooth Profile:	Curved
Width:	15 mm
