305P TKN

Name: 305P TKN
Brand: Timken
SKU: 305P TKN
Price: 69.76 USD
Availability: OutOfStock

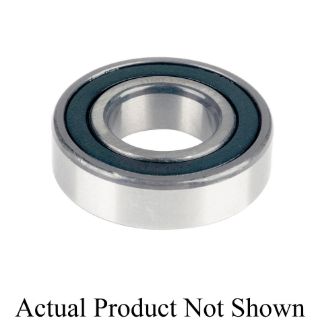

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

305PZ6FS50000

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$69.76 / EA

Description

Brand Name

Timken®

Type

Medium Straight Bore

Description

Timken® supplies a full range of product in the world's most popular design series. Timken® deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.

Timken®, 305PZ6FS50000, Deep Groove Radial Ball Bearing, Medium Straight Bore, Series: 300, 25 mm Bore, 62 mm OD, 1 Rows, 17 mm Width, Single Molded R-Seal Closure, 5890 lb Dynamic/2730 lb Static Load, Cold Rolled Steel Cage, 14000 rpm Grease/16000 rpm Oil Maximum, -50 to 120 deg C

Application

Aircraft, Construction, Agricultural, Machine Tool and General Industry Applications

Standards

Precision Class ABEC 1

Features

Super finished raceways
Quiet operation
Medium 300 series are similar to Light 200 series but with a substantially heavier cross section to withstand greater radial loads and heavier shock loads
Electric motor quality (EMQ)

Specifications

Bearing Material:	Steel
Bore Diameter:	25 mm
Cage Material:	Cold Rolled Steel
Closure Type:	Single Molded R-Seal
Load Capacity:	5890 lb Dynamic/2730 lb Static
Maximum Speed:	14000 rpm Grease/16000 rpm Oil
Number of Rows:	1
Outside Diameter:	62 mm
Series:	300
Temperature Rating:	-50 to 120 deg C
Width:	17 mm
