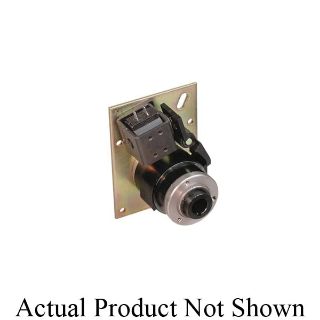

Actual Product May Vary From Image

306-27-044 THO

Name: 306-27-044 THO
Brand: Thomson Industries
SKU: 306-27-044 THO
Availability: OutOfStock

Deltran Wrap Spring™ 306-27-044 Standard CB Solenoid Operated Clutch and Brake Unit, 115 VAC, 500 in-lb Torque, 500 rpm Max, 1 in Dia Bore

Manufacturer: Thomson Industries

Manufacturer part number: 306-27-044

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Deltran

Type

Solenoid Operated

Description

CB series combination clutches and brakes accurately start and stop loads driven by a continuously rotating power source. CB units operate from a single AC or DC pulse, stopping the load within +/- 1/2 deg noncumulative at speeds up to 1800 rpm. Each unit is pre-engineered and pre-assembled for easy installation.

Deltran Wrap Spring™ Clutch and Brake Unit, Solenoid Operated, Series: Standard CB, 1 in Bore, 1.559 to 1.562 in OD, 4-1/4 in Overall Length, 500 in-lb Torque, 115 VAC, 500 rpm Maximum, Horizontal Mounting, 4.312 in W x 5.75 in H Dimensions

Application

Riveters, Punch Presses, Packaging Equipment, Conveyor Drives, Heavy Duty Machinery and Rapid Cycling Equipments

Standards

DEKRA Certified | RoHS Compliant

Features

Adjustable control collars for easy and accurate output stop position setting
Load over-travel or back-up is eliminated since Super CB units lock the load in both directions when the solenoid is off
Permanently lubricated and never needs adjustment for wear
Brings load up to speed in 3 m/s and stops within 1.5 m/s
Anti-overrun feature prevents the output from running faster than the input
Counterclockwise rotation, hub input, indexing type motion clutch and brake unit
Size 6 frame
Cost-effective design

Includes

Anti-Overrun Spring and 2 Stop Collar

Specifications

Bore Diameter:	1 in
Country of Origin:	US
Dimensions:	4.312 in W x 5.75 in H
Maximum Speed:	500 rpm
Mounting Type:	Horizontal
Outside Diameter:	1.559 to 1.562 in
Overall Length:	4-1/4 in
Series:	Standard CB
Torque Rating:	500 in-lb
Voltage Rating:	115 VAC

Resources
