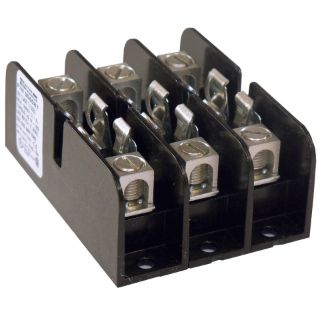

Actual Product May Vary From Image

30608T FER

Name: 30608T FER
Brand: Mersen
SKU: 30608T FER
Price: 42.50 USD
Availability: OutOfStock

Mersen 30608T Open Style Fuse Block, 300 VAC/160 VDC, 60 A, Class: T, 14 to 2 AWG Wire, 3 Poles

Manufacturer: Mersen

Manufacturer part number: 30608T

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$42.50

Qty:

Product Details

Brand Name

Mersen

Type

Open Style

Description

MERSEN class T fuse blocks accommodate class T fuses up to 600 A. Insulators are either durable, glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500 V. MERSEN is the only manufacturer to offer class T blocks with copper connectors.

Mersen Fuse Block, Open Style, 300 VAC/160 VDC, 60 A, 3 Pole, 3 ph, Class: T, Screw Connection, 14 to 2 AWG Wire, Threaded Mounting, 125 deg C, For Use With: A3T Fuse, GFPC, 3.65 in H x 2.73 in W x 1.47 in D Dimensions

Standards

RoHS Compliant | UL 4248-15 Guide IZLT File No. E52283 | UL 4248-15 Guide IZLT2 File No. E52283 Recognized | CSA C22.2 Class 6225-01 File No. 32169_0_000 | CE Certified

Features

Unique integral DIN rail adapters for 600 VAC, 30 and 60 A blocks
Full barrier design (30 and 60 A) increases pole to pole safety
Unique adder block design (30 and 60 A) for design flexibility
Spring reinforcing standard for all 30 and 60 A clips
Features high conductivity copper alloy fuse clips
Cool running high amperage (100 to 600 A) connectors

Specifications

Amperage Rating:	60 A
Class:	T
Connection Type:	Screw
Country of Origin:	MX
Dimensions:	3.65 in H x 2.73 in W x 1.47 in D
Material:	GFPC
Mounting Type:	Threaded
Number of Phases:	3
Number of Poles:	3
Suitable For Use With:	A3T Fuse
Temperature Rating:	125 deg C
Voltage Rating:	300 VAC/160 VDC
Wire Size:	14 to 2 AWG
