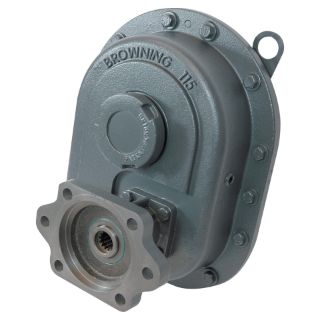

Actual Product May Vary From Image

307HMTP25 14T SAE-C 4 BRN

Name: 307HMTP25 14T SAE-C 4 BRN
Brand: Regal Rexnord
SKU: 307HMTP25 14T SAE-C 4 BRN
Availability: OutOfStock

Browning® TorqTaper PG0008 Type HMTP Plus Shaft Mount Reducer, Involute Spline Input, Tapered Bore Output, 1 hp, 25:1 Gear, 36.013 in-lb Input/900.34 in-lb Output Torque Rating

Manufacturer: Regal Rexnord

Manufacturer part number: PG0008

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Type HMTP

Description

The Browning® TorqTaper® plus tapered bore system is a patented design that allows ease of installation and removal. The TorqTaper® plus bushing can be installed on either the inboard or outboard side of size 107 through 315 reducers. The system also utilizes a bronze stabilizer ring on the opposite end of the bushing. The stabilizer ring helps minimize fretting corrosion which makes removal of the reducer easier.

Browning® TorqTaper Plus Shaft Mount Reducer, Type HMTP, 25:1 Gear Ratio, 1 hp, Involute Spline Input, Tapered Bore Output, 3-7/16 in Output, 36.013 in-lb Input/900.34 in-lb Output, 7.78 in Centre Distance, Synthetic/Mineral Oil Lubrication, Hydraulic Mount, 19.04 in L x 15.41 in W x 24.37 in H

Application

Aggregate, Cement, Agriculture, Grain, Minerals, Mining, Unit Handling, Water and Wastewater Industries

Standards

AGMA Standard

Features

Design provides full length bushing support of drive
Accommodates a wide range of shaft diameters
Reduces installation and removal time
Key to key drive provides maximum torque and shock load capacity
Eliminates fretting corrosion and seizing problems
Reduces wobble and accommodates undersized shaft
Single TorqTaper® bushing installs from either side of the unit for easy-on/easy-off mounting with stabilizer ring
Standard double-lip seals ride on plunge ground shafts
Standard tapered roller bearings provide maximum overhung load capacity

Specifications

Centre Distance:	7.78 in
Country of Origin:	US
Dimensions:	19.04 in L x 15.41 in W x 24.37 in H
Gear Ratio:	25:1
Horsepower:	1 hp
Input Type:	Involute Spline
Lubrication Type:	Synthetic/Mineral Oil
Mounting Type:	Hydraulic
Output Size:	3-7/16 in
Output Type:	Tapered Bore
Torque Rating:	36.013 in-lb Input/900.34 in-lb Output
