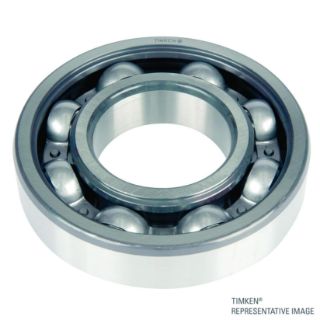

308K TKN

Product Details

Manufacturer:
Manufacturer part number:
308KZ6FS50000
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Timken®

Type

Medium Round Bore

Description

The 300 series radial ball bearings are similar in construction to the 200 series, but have considerably heavier cross sections throughout. They provide greater radial and thrust capacity and are able to withstand heavier shock loads. Because of their rugged construction, these bearings are particularly suited for heavy-duty applications like those found in large electric motors, woodworking machinery and gear boxes. This series includes both conrad and maximum capacity designs as well as shielded, sealed and snap ring variations. In the 300 series wide-type, rubber seal(W300PP) and mechani-seal(W300KLL) bearings are made with standard bores and outside diameters, but in width equal to the corresponding sizes of double-row bearings.
Timken®, 308KZ6FS50000, Deep Groove Radial Ball Bearing, Medium Round Bore, Series: 300, 40 mm Bore, 90 mm OD, 1 Rows, 23 mm Width, Open Closure, 11000 lb Dynamic/5850 lb Static Load, Steel Bearing, 5380 rpm Maximum, -50 to 120 deg C, Uncoated

Application

For use with large electric motors, woodworking machinery and gear boxes

Standards

ABEC 1 Certified

Features

  • A heavier cross section than the 200 series
  • Capable of carrying considerably heavier radial, thrust and combined loads for a given bore size
  • Capable of withstanding heavy shock loads
  • Uses conrad-type bearing that is well-balanced, with deep races and uninterrupted race shoulders
  • Electric motor quality for applications where quietness is a requirement

Specifications

Bearing Material:Steel
Bore Diameter:40 mm
Cage Material:Steel
Closure Type:Open
Country of Origin:US
Finish:Uncoated
Load Capacity:11000 lb Dynamic/5850 lb Static
Maximum Speed:5380 rpm
Number of Rows:1
Outside Diameter:90 mm
Series:300
Temperature Rating:-50 to 120 deg C
Width:23 mm

Products Specifications

Bore Size
40 mm
Brand Name
Timken
Outside Diameter
90 mm
Width
23 mm
