309003A01F120 WOO

Product Details

Manufacturer:
Manufacturer part number:
309003A01F120
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 12 days
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Brad®

Type

Size C Internal Threaded Single Ended

Description

Brad® Mini-Change® connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change® connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick connect alternative to hard wiring. Mini-Change® connectors are available in a wide variety of circuits and configurations, with pole configurations available in 2 through 12, 14 and 19. With Mini-Change® connectors, industrial device wiring is easier to install and maintain. To ensure a consistent, low resistance connection, the patented Quad Beam™ female contact is used. Connectors are sealed to provide IP67 protection. An anti-vibration feature prevents the coupler from loosening, even under extreme conditions.

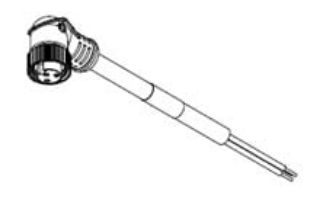

Brad® Mini-Change® Cordset, Size C Internal Threaded Single Ended, Series: 130008, 90 deg Male x Pigtail Connector, PVC, STOOW Cable, 12 ft Cable Length, PVC Cable, 9 Poles, 600 VAC/VDC, 7 A, 90 deg, IP67

Features

  • Low resistance contact design with gold over nickel plating
  • Epoxy coated coupling nut is corrosion and weld slag resistant
  • Cable is oil, water and abrasion resistant

Specifications

Amperage Rating:7 A
Angle:90 deg
Cable Length:12 ft
Cable Material:PVC
Cable Type:STOOW
Connector Material:PVC
Connector Type:90 deg Male x Pigtail
Country of Origin:US
NEMA Rating:IP67
Number of Poles:9
Series:130008
Voltage Rating:600 VAC/VDC
