309W TKN

Product Details

Manufacturer:
Manufacturer part number:
309W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Timken®

Type

Medium Round Bore

Description

The 300 series radial ball bearings are similar in construction to the 200 series, but have considerably heavier cross sections throughout. They provide greater radial and thrust capacity and are able to withstand heavier shock loads. Because of their rugged construction, these bearings are particularly suited for heavy-duty applications like those found in large electric motors, woodworking machinery and gear boxes. This series includes both conrad and maximum capacity designs as well as shielded, sealed and snap ring variations. In the 300 series wide-type, rubber seal(W300PP) and mechani-seal(W300KLL) bearings are made with standard bores and outside diameters, but in width equal to the corresponding sizes of double-row bearings.

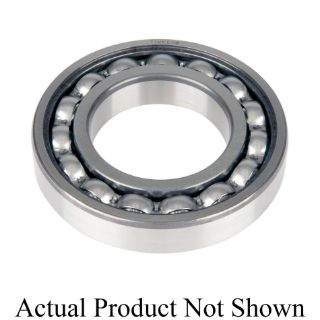

Timken®, 309W, Deep Groove Radial Ball Bearing, Medium Round Bore, Series: 300, 45 mm Bore, 100 mm OD, 1 Rows, 25 mm Width, Open Closure, 17300 lb Dynamic/10600 lb Static Load, Steel Bearing, 4140 rpm Maximum, -50 to 120 deg C, Uncoated

Application

Agricultural, Automotive, Chemical, General Industrial and Utilities

Standards

ABEC 1 Certified

Features

  • 300W series bearings are dimensionally interchangeable with the 300K series
  • A heavier cross section than the 200 series
  • Capable of carrying considerably heavier radial, thrust and combined loads for a given bore size, due to their larger ball complements
  • Capable of withstanding heavy shock loads

Specifications

Bearing Material:Steel
Bore Diameter:45 mm
Cage Material:Steel
Closure Type:Open
Country of Origin:US
Finish:Uncoated
Load Capacity:17300 lb Dynamic/10600 lb Static
Maximum Speed:4140 rpm
Number of Rows:1
Outside Diameter:100 mm
Series:300
Temperature Rating:-50 to 120 deg C
Width:25 mm

Products Specifications

Bore Size
45 mm
Brand Name
Timken
Outside Diameter
100 mm
Width
25 mm
