30CIF21 BSF

Product Details

Manufacturer:
Manufacturer part number:
30CIF21
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 28 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Bussmann

Type

Canadian

Description

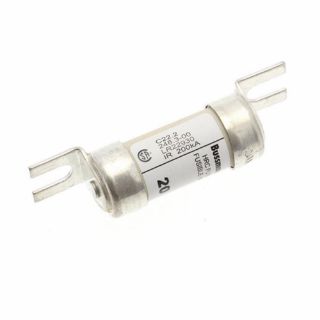

Bussmann HRC Fuse, Canadian, 30 A

Application

For use in circuits subject to surge currents such as those caused by motors, transformers and other inductive loads

Standards

CE Certified | CSA C22.2 No. 106-M92

Features

  • Close sizing to loads allows using smaller and less costly switches
  • Provides a higher degree of short circuit protection
  • Helps protect motors against burnout from overloads

Specifications

Amperage Rating:30 A
Body Size:0.54 in Dia x 2.15 in L
Body Type:Cartridge
Country of Origin:GB
Element:Dual
Interrupt Rating:200 kA
Material:Ceramic
Mounting Type:Bolted-On
Series:CIF21
Terminal Type:Offset Blade
Voltage Rating:600 VAC/250 VDC
