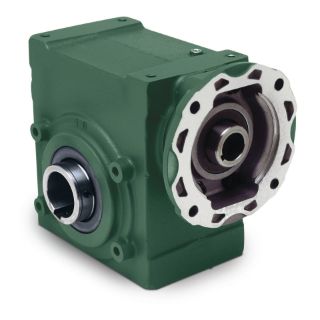

Actual Product May Vary From Image

30Q60H14 DOD

Name: 30Q60H14 DOD
Brand: Dodge
SKU: 30Q60H14 DOD
Price: 2,094.69 USD
Availability: OutOfStock

30Q60H14 TIGEAR-2 REDUCER

Manufacturer: Dodge

Manufacturer part number: 30Q60H14

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$2,094.69

Qty:

Product Details

Base to Output Center Height:	3.2500
Base to Output Center Height (Unit):	INCH
Bore Diameter (Output):	1.9380
Bore Diameter (Output) (Unit):	INCH
Bore Length:	7.7600
Bore Length (Unit):	INCH
Case Size:	30
Center Distance:	3.0000
Center Distance (Unit):	INCH
Gearbox Component Type:	Gearbox
Horsepower Rating Input:	1.5000
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	0.9900
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	Quill
Lubrication:	PAG, Standard Temperature
Motor Compatibility:	NEMA Motor, 140TC Frame
Mounting Bolt Pattern Length:	7.0000
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	4.0000
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	60.0000
Output Shaft:	Hollow
Output Shaft Center to Input Motor Mounting Face Distance:	6.1100
Output Shaft Center to Input Motor Mounting Face Distance (Unit):	INCH
Output Style:	Hollow
Overhung Load:	2300
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	2138
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Suitable For Washdown:	No
Thermal Horsepower Rating:	2.0100
Thermal Horsepower Rating (Unit):	HORSEPOWER
