30X52X6MSS1N DIC

Name: 30X52X6MSS1N DIC
Brand: Dichtomatik
SKU: 30X52X6MSS1N DIC
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Dichtomatik

Manufacturer part number:

30X52X6MSS1N

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

FREUDENBERG

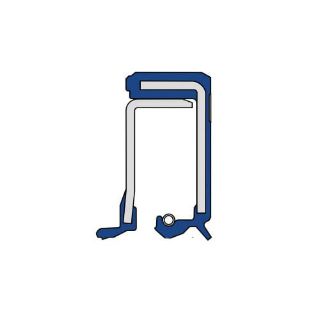

Description

The standard Simmering® BA U SL as basic module combined with an inner buffer seal with sine wave-shaped sealing lip as one-piece solution, example for drive technology applications. A proven type with high resistance to soiling and metal abrasion in the oil chamber.

FREUDENBERG Simmering® Oil Seal, Series: MSS1, 30 mm Inside Dia, 52 mm Outside Dia, 72 Durometer, 6 mm Width, -40 to 212 deg F, NBR Lip, Blue, Import

Application

For industrial gearboxes

Standards

ADI Free Certified

Features

Comprised of a well-proven, standard Simmering® combined with an inner buffer, the MSS 1 delivers contaminant exclusion, including particles from gear wear, with low friction
Protection from internal contamination even at vertical shaft position
Low friction even at overpressure
Less stress of lubricant due to sinus wave lip
Up to 70% less friction/power dissipation in comparison to existing solutions (two seals)
Broad range of applications, for example in industrial gearboxes
Reliable sealing of the housing bore, even with increased roughness of the bore, thermal expansion and split housings
Very long service life and reliability, especially when subject to strong external dirt and/or contamination (metal abrasion, cast sand) of the lubricant
Optimal for vertical unit application
Very narrow axial design
Reliable sealing of the housing bore and more

Specifications

Color:	Blue
Country of Origin:	CZ
Domestic/Import:	Import
Durometer:	72
Inside Diameter:	30 mm
Lip Material:	NBR
Outside Diameter:	52 mm
Series:	MSS1
Temperature Rating:	-40 to 100 deg C
Width:	6 mm
