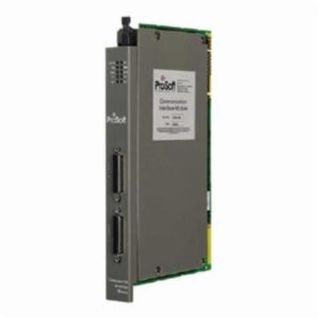

3100-MCM PRS

Name: 3100-MCM PRS
Brand: Prosoft Technology
SKU: 3100-MCM PRS
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Prosoft Technology

Manufacturer part number:

3100-MCM

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

InRAx®

Type

Master/Slave

Description

The inRAx Modbus Master/Slave Communication Module allows Rockwell Automation PLC processors to interface easily with other Modbus protocol compatible devices. Compatible devices include not only Modicon PLCs (which all support the Modbus protocol) but also a wide assortment of end devices. The module acts as an input/output module between the Modbus network and the Rockwell Automation backplane. The data transfer from the processor is asynchronous from the actions on the Modbus network.

InRAx® Communication Module, Master/Slave, Series: 3100, 0.65 A, 32 to 140 deg F

Application

Foreign Device Data Concentrator, Pipelines and Offshore Platforms, Food processing, Mining, Pulp and Paper and SCADA Communications

Standards

CE Certified | cUL and UL Listed

Features

The inRAx Modbus Master/Slave Communication Module is designed to allow PLC processors to interface easily with Modbus protocol compatible devices and hosts
The inRAx module acts as an input/output module between the Modbus network and the Rockwell Automation backplane. The data transfer from the PLC processor is asynchronous from the actions on the Modbus network
Many host SCADA packages support the Modbus protocol, while devices commonly supporting the protocol include several PLCs, as well as many other third party devices in the marketplace. (For a partial list of devices that speak Modbus, please visit the ProSoft Tested section of the ProSoft Technology web site)
Up to 100 entries in the command list, each fully configurable for function, slave address, register to/from addressing and word/bit count(Master port)
Continuous polling of command list(Master port)
Support for the storage and transfer of up to 4000 registers to/from the PLC
Event driven bit and register write commands (Master port)
Full radio, modem and multi-drop support
Supports RS-232C, RS-422 and RS-485 interfaces
Communication error codes and counters returned to ladder logic (Slave port)
Communication error codes returned to ladder logic on a per command basis (Master Port)

Specifications

Amperage Rating:	0.65 A
Country of Origin:	US
Series:	3100
Temperature Rating:	32 to 140 deg F
