311WDD FS433 TKN

Name: 311WDD FS433 TKN
Brand: Timken
SKU: 311WDD FS433 TKN
Availability: OutOfStock

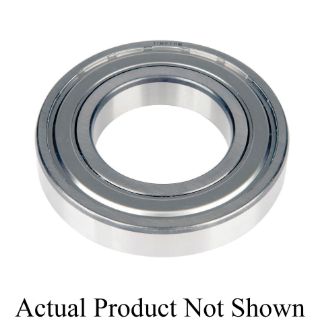

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

311WDDFS433

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Timken®

Type

Medium Straight Bore

Description

Timken® supplies a full range of product in the world's most popular design series. Timken® deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.

Timken®, 311WDDFS433, Deep Groove Radial Ball Bearing, Medium Straight Bore, Series: 300, 55 mm Bore, 120 mm OD, 1 Rows, 29 mm Width, Dual Shield Closure, 23200 lb Dynamic/15000 lb Static Load, Cold Rolled Steel Cage, 4545.45 rpm Grease/5454.54 rpm Oil Maximum, -50 to 120 deg C

Application

Aircraft, Construction, Agricultural, Machine Tool and General Industry Applications

Standards

Precision Class ABEC 1

Features

Super finished raceways
Quiet operation
Medium 300 series are similar to Light 200 series but with a substantially heavier cross section to withstand greater radial loads and heavier shock loads
Max capacity ball configuration for increased radial load capabilities

Specifications

Bearing Material:	Steel
Bore Diameter:	55 mm
Cage Material:	Cold Rolled Steel
Closure Type:	Dual Shield
Load Capacity:	23200 lb Dynamic/15000 lb Static
Maximum Speed:	4545.45 rpm Grease/5454.54 rpm Oil
Number of Rows:	1
Outside Diameter:	120 mm
Series:	300
Temperature Rating:	-50 to 120 deg C
Width:	29 mm
