Picture of 3125B6W LEV
Actual Product May Vary From Image

3125B6W LEV

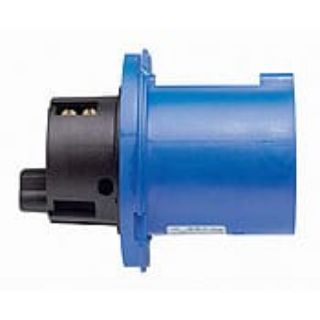

Leviton® 3125B6W Series II Watertight Pin and Sleeve Inlet, 250 VAC, 125 A, 2 Poles, 3 Wires, Blue
Manufacturer: Leviton Manufacturing
Manufacturer part number: 3125B6W
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Leviton®

Type

Watertight

Description

Leviton® Pin and Sleeve Inlet, Watertight, Series: Series II, 250 VAC, 125 A, 50/60 Hz Frequency, 2 Pole, 3 Wires, Industrial Grade, IP67 Enclosure, 30 deg C, Screw Terminal, Valox® 357, Blue, 5.71 in L Dimensions

Application

Industrial Applications

Standards

CE Certified | IEC 60309-1/60309

Features

  • Rugged housing, made of superior performance PBT, provides maximum corrosion protection and makes the device more resistant to impact, abuse and temperature extremes
  • V-0 flame rated and superior UV stability
  • Contact carrier resists arcing and internal heat build up
  • Dependable, clean brass construction for long life, reliable electrical contact, maximum conductivity and corrosion resistance
  • Watertight chloroprene onion skin grommet provides a precise, reliable seal at the cable entry point
  • Ground, neutral and phase terminals are clearly identified by color coding or letters and numbering on both front and back sides
  • Multiple contact points assure a continuously reliable electrical connection

Specifications

Amperage Rating:125 A
Color:Blue
Country of Origin:CZ
Dimensions:5.71 in L
Enclosure:IP67
Frequency Rating:50/60 Hz
Grade:Industrial
Material:Valox® 357
Number of Poles:2
Number of Wires:3
Series:Series II
Temperature Rating:30 deg C
Terminal Type:Screw
Voltage Rating:250 VAC
