3125C6W LEV

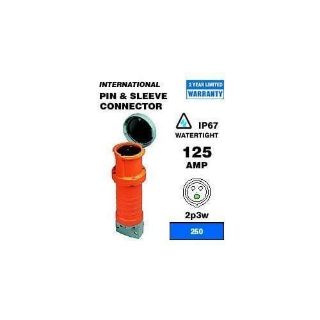

Picture of 3125C6W LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
3125C6W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Type

Watertight

Description

Leviton® offers international-rated pin and sleeve devices available in 16, 32, 63 and 125 Amps. These IEC 60309-1 and 60309-2 compliant devices are ideal for use overseas where voltage and amperage requirements differ from North American standards, but where rigorous performance, quality and reliability criteria need to be met. Our 16, 32 and 63 A devices have an environmental classification of splashproof (IP44) and 125 A devices are classified as watertight (IP67).
Leviton® Pin and Sleeve Connector, Watertight, 250 VAC, 125 A, 50/60 Hz Frequency, 2 Pole, 3 Wires, Industrial Grade, IP67 Enclosure, 30 deg C, Screw Terminal, Valox® 357, Blue, 4.8 in Dia x 12.8 in L Dimensions

Application

Industrial Applications

Standards

CE 73/23/EEC | CE 93/68/EEC | CSA C22.2 File No. 182.1 | IEC 60309-1/60309-2 | UL 1682 | UL 1686 | UL 94 V-2 Flammability Rated

Features

  • Rugged housing, made of superior performance Valox® 357, provides maximum corrosion protection and makes the device-resistant to impact and abuse, greater resistance to temperature extremes, V-0 flame rated and superior UV stability
  • Contact carrier resists arcing and internal heat build-up, 60 and 100 A contact/pin carriers are made of reinforced nylon for even greater strength and temperature resistance
  • Solid brass terminal screws on 20 A, 30 A and 60 A devices provide maximum clamping pressure
  • Stainless steel terminal screws and terminals on 100 A devices provide corrosion-resistance in caustic environments
  • Watertight chloroprene onion skin grommet provides a precise, reliable seal at the cable entry point
  • Multiple contact points assure a continuously reliable electrical connection

Specifications

Amperage Rating:125 A
Color:Blue
Country of Origin:CZ
Dimensions:4.8 in Dia x 12.8 in L
Enclosure:IP67
Frequency Rating:50/60 Hz
Grade:Industrial
Material:Valox® 357
Number of Poles:2
Number of Wires:3
Temperature Rating:30 deg C
Terminal Type:Screw
Voltage Rating:250 VAC
