314K FS940 TKN

Name: 314K FS940 TKN
Brand: Timken
SKU: 314K FS940 TKN
Availability: OutOfStock

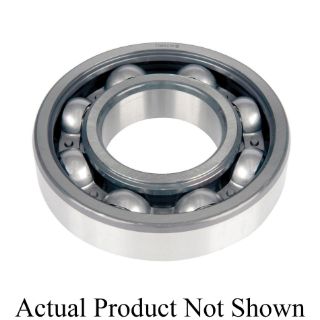

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

314KFS940

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Timken®

Type

Medium Straight Bore

Description

Timken® supplies a full range of product in the world's most popular design series. Timken® deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.

Timken®, 314KFS940, Deep Groove Radial Ball Bearing, Medium Straight Bore, Series: 300, 70 mm Bore, 150 mm OD, 1 Rows, 35 mm Width, Open Closure, 26000 lb Dynamic/15300 lb Static Load, Cold Rolled Steel Cage, 3181.82 rpm Grease/3636.37 rpm Oil Maximum, -50 to 120 deg C

Application

Aircraft, Construction, Agricultural, Machine Tool and General Industry Applications

Standards

Precision Class ABEC 1

Features

Super finished raceways
Quiet operation
Medium 300 series are similar to Light 200 series but with a substantially heavier cross section to withstand greater radial loads and heavier shock loads

Specifications

Bearing Material:	Steel
Bore Diameter:	70 mm
Cage Material:	Cold Rolled Steel
Closure Type:	Open
Load Capacity:	26000 lb Dynamic/15300 lb Static
Maximum Speed:	3181.82 rpm Grease/3636.37 rpm Oil
Number of Rows:	1
Outside Diameter:	150 mm
Series:	300
Temperature Rating:	-50 to 120 deg C
Width:	35 mm
