315HMTP15 14T SAE-C 4 BRN

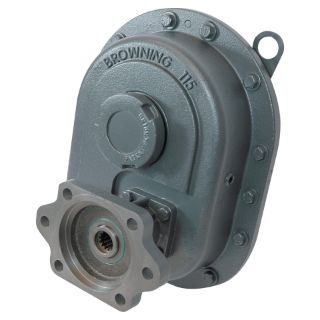

Picture of 315HMTP15 14T SAE-C 4 BRN
Actual Product May Vary From Image

Product Details

Manufacturer:
Regal Rexnord
Manufacturer part number:
PH0007
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Browning®

Type

Type HMTP

Description

The Browning® TorqTaper® plus tapered bore system is a patented design that allows ease of installation and removal. The TorqTaper® plus bushing can be installed on either the inboard or outboard side of size 107 through 315 reducers. The system also utilizes a bronze stabilizer ring on the opposite end of the bushing. The stabilizer ring helps minimize fretting corrosion which makes removal of the reducer easier.
Browning® TorqTaper Plus Shaft Mount Reducer, Type HMTP, 15:1 Gear Ratio, 1 hp, Involute Spline Input, Tapered Bore Output, 3-15/16 in Output, 116.67 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 36.013 in-lb Input/540.19 in-lb Output, 8.53 in Centre Distance, Synthetic/Mineral Oil Lubrication, Hydraulic Mount, 19.9 in L x 16.97 in W x 26.35 in H

Application

Aggregate, Cement, Agriculture, Grain, Minerals, Mining, Unit Handling, Water and Wastewater Industries

Standards

AGMA Standard

Features

  • Design provides full length bushing support of drive
  • Accommodates a wide range of shaft diameters
  • Reduces installation and removal time
  • Key to key drive provides maximum torque and shock load capacity
  • Eliminates fretting corrosion and seizing problems
  • Reduces wobble and accommodates undersized shaft
  • Single TorqTaper® bushing installs from either side of the unit for easy-on/easy-off mounting with stabilizer ring
  • Standard double-lip seals ride on plunge ground shafts
  • Standard tapered roller bearings provide maximum overhung load capacity

Specifications

Centre Distance:8.53 in
Country of Origin:US
Dimensions:19.9 in L x 16.97 in W x 26.35 in H
Gear Ratio:15:1
Horsepower:1 hp
Input Maximum Speed:1750 rpm
Input Type:Involute Spline
Lubrication Type:Synthetic/Mineral Oil
Mounting Type:Hydraulic
Output Maximum Speed:116.67 rpm
Output Size:3-15/16 in
Output Type:Tapered Bore
Torque Rating:36.013 in-lb Input/540.19 in-lb Output
