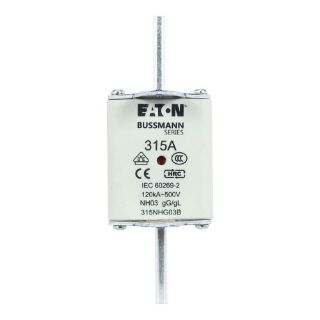

Picture of 315NHG03B BSF
Actual Product May Vary From Image

315NHG03B BSF

Bussmann 315NHG03B Dual Indicator Low Voltage Size 03 NH Fuse Link, 500 V, 315 A, For Use With Class C gG/gL Fuse, Ceramic
Manufacturer: Bussmann
Manufacturer part number: 315NHG03B
Availability: Expected Leadtime 30 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Type

Dual Indicator Low Voltage Size 03

Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.
Bussmann NH Fuse Link, Dual Indicator Low Voltage Size 03, Series: NHG, 500 V, 315 A, 45 to 62 Hz Frequency, Rated Breaking Capacity: 120 kA, Holder Mounting, For Use With: Class C gG/gL Fuse, Ceramic

Application

Aftermarket, Control Panels for Machines, Panel Builders, OEMs, Electrical Assemblies, Panels, Power Distribution and Control, Industrial Applications, Safety and Security Systems

Standards

CCC Certified | CE Certified | DIN 43620 | IEC 60269 | RoHS Compliant | UL Listed | VDE 0636

Features

  • Square body with knife blade contact
  • Live gripping lugs

Specifications

Amperage Rating:315 A
Country of Origin:IN
Dimensions:150 mm L x 60 mm W
Frequency Rating:45 to 62 Hz
Material:Ceramic
Mounting Type:Holder
Rated Breaking Capacity:120 kA
Series:NHG
Suitable For Use With:Class C gG/gL Fuse
Voltage Rating:500 V
