32008JR KOY

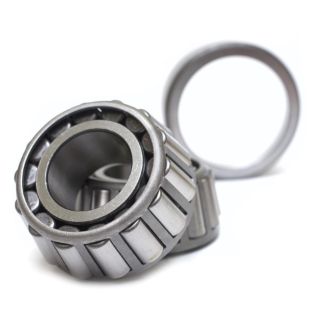

Koyo 32008JR Metric Series Caged Tapered Roller Bearing, 40 mm Dia Bore, 68 mm OD, 1 Row, 19 mm W, 53.5 kN Dynamic/71.4 kN Static Load
Manufacturer: Koyo Bearings
Manufacturer part number: 32008JR
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$31.54

Product Details

Brand Name

Koyo

Type

Caged

Description

Tapered roller bearing are designed such that cup, cone and rollers have tapered surfaces whose apexes converge at a common point on the bearing axis. Along with metric series bearing, inch series bearing are also available. This type of bearing is suitable for applications that involve heavy or impact loading.
Koyo Tapered Roller Bearing, Caged, Series: Metric Series, 40 mm Bore, 68 mm OD, 1 Row, 19 mm Width, 53.5 kN Dynamic/71.4 kN Static Load, Pressed Steel Cage, 5600 rpm Grease/7400 rpm Oil Maximum

Standards

ABEC1 Class P0

Features

  • Ability to carry radial and axial load in one direction, because an axial component of force is produced when this type of bearing is loaded radially, two bearings are used together facing one another or two or more bearings are matched and used
  • There are the standard, medium and steep type which are different in contact angle size, medium tapered metric series bearing are identified by the supplementary code "C" which is added as a suffix to bearing numbers
  • Bearing whose cup width, cup small inside diameter and contact angle are determined in accordance with ISO 355 specifications are identified by the supplementary code "J" as suffix

Specifications

Bore Diameter:40 mm
Cage Material:Pressed Steel
Load Capacity:53.5 kN Dynamic/71.4 kN Static
Maximum Speed:5600 rpm Grease/7400 rpm Oil
Number of Rows:1
Outside Diameter:68 mm
Series:Metric Series
Width:19 mm
