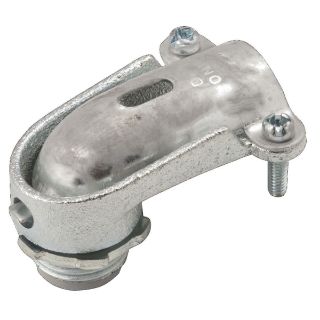

Actual Product May Vary From Image

3202-8 RAC

Name: 3202-8 RAC
Brand: Raco Industries
SKU: 3202-8 RAC
Availability: OutOfStock

RACO® 3202-8 Insulated Squeeze Conduit Connector, 1/2 in Trade, 0.622 in Cable Openings, For Use With Armored Cable, Malleable Iron, Electro-Plated Zinc

Manufacturer: Raco Industries

Manufacturer part number: 3202-8

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

RACO®

Type

Insulated

Description

RACO® Squeeze Conduit Connector, Insulated, 1/2 in, Cable Openings: 0.622 in, 90 deg, For Use With: Armored Cable, Clamping Mount, Malleable Iron, Silver, Electro-Plated Zinc, 2.2343 in L x 1.7968 in W

Application

Used in dry locations to bond flexible metal conduit to a box or enclosure and electrical applications

Standards

UL File No. E195969 | cULus Listed

Features

All malleable iron construction insures mechanical protection for the raceway
Electro zinc plated for added corrosion protection
0.57 in ID throat
27/64 in thread length
Rugged metallic construction
UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation

Specifications

Angle:	90 deg
Cable Openings:	0.622 in
Color:	Silver
Country of Origin:	CN
Dimensions:	2.2343 in L x 1.7968 in W
Finish:	Electro-Plated Zinc
Material:	Malleable Iron
Mounting Type:	Clamping
Suitable For Use With:	Armored Cable
Trade Size:	1/2 in
