32026XM 90KM7 TKN

Product Details

Manufacturer:
Manufacturer part number:
32026XM-90KM7
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Timken®

Type

Straight Bore Unmounted

Description

Timken® is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

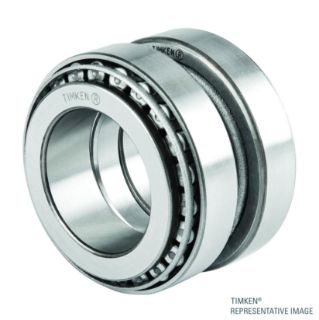

Timken®, 32026XM-90KM7, Tapered Roller Bearing Assembly, Straight Bore Unmounted, 130 mm Bore, 200 mm OD, 1 Rows, 45.0011 mm Width, 179000 lb Dynamic/278000 lb Static Load, Steel Bearing, -65 to 250 deg F

Application

Aerospace, Agriculture, Automotive, Heavy Truck, Cement, Aggregate, Coal, Oil and Gas, Construction, Gear Drives, Machine Tools, Mining, Paper, Metals, Rail and Wind Industries Applications

Standards

Standard Class K | DIN 623

Features

  • Engineered to deliver higher speeds, heavier loads and longer life
  • Unrivaled technology and engineering support
  • Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Includes

(1) JY20099Q-20000 Cup Spacer, (2) 32026XM-90KM6 Tapered Roller Bearing Assembly, (1) X32026XM-KE28 Single Cone and (1) Y32026XM-KE28 Single Cup

Specifications

Bearing Material:Steel
Bore Diameter:130 mm
Cage Material:Steel
Load Capacity:179000 lb Dynamic/278000 lb Static
Number of Rows:1
Outside Diameter:200 mm
Temperature Rating:-65 to 250 deg F
Width:45.0011 mm

Products Specifications

Brand Name
TIMKEN CORPORATION
