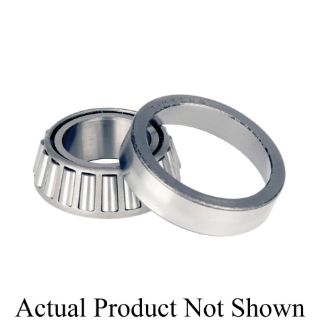

Actual Product May Vary From Image

32028XM-90NM1 TKN

Name: 32028XM-90NM1 TKN
Brand: Timken
SKU: 32028XM-90NM1 TKN
Availability: OutOfStock

Tapered Roller Bearing Metric Assembly

Manufacturer: Timken

Manufacturer part number: 32028XM-90NM1

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

TRB Metric Assembly | Imperial | 140 mm 5.5 in Bore | 210 mm 8.3 in OD | 45 mm 1.8 in Width

Features

Widest choice including both inch and metric sizes
Engineered to deliver higher speeds, heavier loads and longer life
Unrivaled technology and engineering support
Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Specifications

Assembly Components:	Assembly
Assembly Number:	90NM1
Bearing Material:	Steel
Bearing Type:	Unmounted Tapered Roller Bearing
Bore Type:	Straight Bore
Cage (Retainer) Type:	Steel
Cage Material:	Steel
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	88400
Inner Race Width (in):	1.7717
Inner Race Width (mm):	45.00118
Load Rating UOM:	LB
Material - Rolling Elements:	Steel
Outer Diameter (in):	8.2677
Outer Diameter (mm):	209.99958
Outer Diameter Type:	Straight OD
Outer Race Width (in):	1.3386
Outer Race Width (mm):	34.00044
Overall Width (in):	1.7717
Overall Width (mm):	45.00118
Precision class:	Class N (Standard)
Raceway Style:	Tapered Roller Bearing
Rolling Element:	Tapered Roller
Row Type:	Single
Shaft Size (in):	5.5118
Shaft Size (mm):	139.99972
Static Load Rating:	145000
