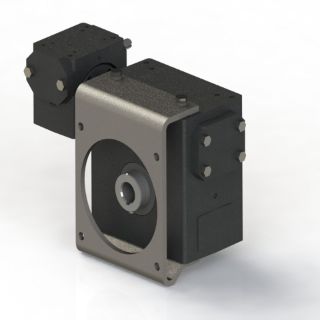

Actual Product May Vary From Image

3203 1000/1 WR 2.000 (SIDE MT) HUB

Name: 3203 1000/1 WR 2.000 (SIDE MT) HUB
SKU: 3203 1000/1 WR 2.000 (SIDE MT) HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-30273 3200 Double Reduction Right Angle Worm Gear Reducer, Shaft Input, Hollow Bore Output, 0.31 hp Input, 1000:1 Gear, 1.75 rpm Maximum Output, 4898 in-lb Output Torque Rating

Manufacturer part number: 0230-30273

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 3200, 1000:1 Gear Ratio, 0.31 hp Input, Shaft Input, Hollow Bore Output, 5/8 in Dia Input, 2 in Dia Output, 1.75 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 4898 in-lb Output Torque, 3-1/4 in Centre Distance, 3/16 x 3/32 in Input Keyway, 43.9 % Efficiency, Conventional Oil Lubrication, Side Mounting, Cast Iron, 7.78 in W

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	3-1/4 in
Dimensions:	7.78 in W
Efficiency:	43.9 %
Gear Ratio:	1000:1
Horsepower:	0.31 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Mounting Type:	Side
Output Maximum Speed:	1.75 rpm
Output Size:	2 in Dia
Output Type:	Hollow Bore
Series:	3200
Torque Rating:	4898 in-lb Output
