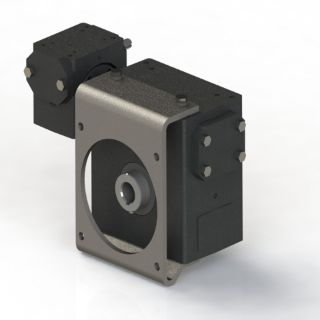

Actual Product May Vary From Image

3203 300/1 WR 1.938 (SIDE MT) HUB

Name: 3203 300/1 WR 1.938 (SIDE MT) HUB
SKU: 3203 300/1 WR 1.938 (SIDE MT) HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-30247 3200 Double Reduction Right Angle Worm Gear Reducer With Side Mounting Flange, Shaft Input, Hollow Bore Output, 0.79 hp Input, 300:1 Gear, 5.83 rpm Maximum Output, 4794 in-lb Output Torque Rating

Manufacturer part number: 0230-30247

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 3200, 300:1 Gear Ratio, 0.79 hp Input, Shaft Input, Hollow Bore Output, 0.625 in Dia x 1.76 in L Input, 1.938 in Dia Output, 5.83 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 4794 in-lb Output, 3-1/4 in Centre Distance, 3/16 x 3/32 in Input, 1/2 x 1/4 in Output Keyway, 56.1 % Efficiency, Conventional Oil Lubrication, Cast Iron, 7.78 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	3-1/4 in
Dimensions:	7.78 in W
Efficiency:	56.1 %
Gear Ratio:	300:1
Horsepower:	0.79 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.625 in Dia x 1.76 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input, 1/2 x 1/4 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	5.83 rpm
Output Size:	1.938 in Dia
Output Type:	Hollow Bore
Series:	3200
Torque Rating:	4794 in-lb Output
