Actual Product May Vary From Image

320B7-W LEV

Name: 320B7-W LEV
Brand: Leviton Manufacturing
SKU: 320B7-W LEV
Availability: OutOfStock

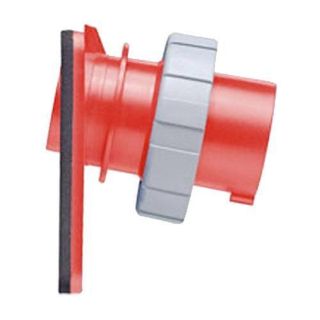

Leviton® 320B7W Watertight Pin and Sleeve Inlet, 480 VAC, 20 A, 2 Poles, 3 Wires, Red

Manufacturer: Leviton Manufacturing

Manufacturer part number: 320B7W

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Watertight

Description

Leviton® Pin and Sleeve Inlet, Watertight, 480 VAC, 20 A, 2 Pole, 3 Wires, Industrial Grade, IP67 Enclosure, Screw Terminal, Valox® 357, Red, 2.24 in L Dimensions

Application

Industrial Applications

Standards

CE Certified | CSA C22.2 No. 182.1 | IEC 60309-1 | 60309-2 | UL 1682 | 1686

Features

Certified for current interrupting at full rated current

Specifications

Amperage Rating:	20 A
Color:	Red
Country of Origin:	CZ
Dimensions:	2.24 in L
Enclosure:	IP67
Frequency Rating:	50/60 Hz
Grade:	Industrial
Material:	Valox® 357
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw
Voltage Rating:	480 VAC
