3215 FAG

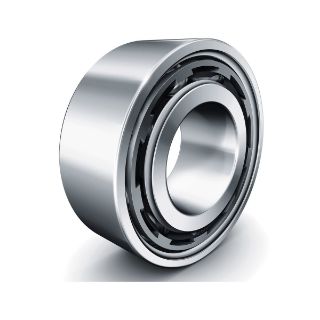

FAG 3215 Angular Contact Ball Bearing, 75 mm Dia Bore, 130 mm OD, 2 Rows, 41.3 mm W
Manufacturer: INA
Manufacturer part number: 3215
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

FAG

Description

Double-row angular contact ball bearings are units with solid inner and outer rings and ball and cage assemblies with polyamide, brass or sheet-steel cages. Their construction is similar to a pair of single-row angular contact ball bearings in an O arrangement, but they are narrower to a certain extent. They differ in the size of the contact angle and the design of the bearing rings. The bearings are available in open and sealed designs. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields. Sealed bearings are maintenance-free and therefore facilitate particularly economical bearing arrangements. The angular adjustment facility of angular contact ball bearings is very limited.
FAG Angular Contact Ball Bearing, Series: 32 Series, 75 mm Bore, 130 mm OD, 2 Rows, 41.3 mm Width, Open Closure, Sheet Steel Cage

Features

  • Double row angular contact ball bearings are particularly suitable where the design envelope is not sufficient under high loads for a pair of single row angular contact ball bearings
  • High radial and axial loads are acting simultaneously
  • Tilting moments must also be supported
  • A relatively rigid bearing arrangement is required

Specifications

Bore Diameter:75 mm
Cage Material:Sheet Steel
Closure Type:Open
Country of Origin:SK
Number of Rows:2
Outside Diameter:130 mm
Series:32 Series
Width:41.3 mm
