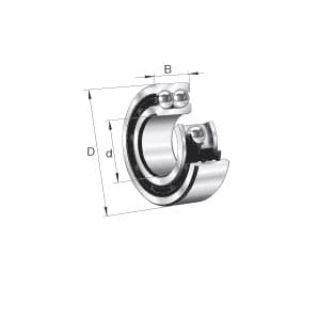

Actual Product May Vary From Image

3222-M-C3 FAG

Name: 3222-M-C3 FAG
Brand: INA
SKU: 3222-M-C3 FAG
Price: 1,352.40 USD
Availability: OutOfStock

FAG 3222-M-C3 32 Series Angular Contact Ball Bearing, 110 mm Dia Bore, 200 mm OD, 2 Rows, 69.8 mm W, 35 deg, 236000 N Dynamic/290000 N Static Load

Manufacturer: INA

Manufacturer part number: 3222-M-C3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,352.40

Qty:

Product Details

Brand Name

FAG

Description

FAG Angular Contact Ball Bearing, Series: 32 Series, 110 mm Bore Dia, 200 mm Outside Dia, 2 Rows, 69.8 mm W, 35 deg Contact, Open Closure, 236000 N Dynamic/290000 N Static, Brass Cage, 4400 rpm Maximum, -30 to 150 deg C

Standards

Meets to DIN 628-3

Features

C3 axial internal clearance

Specifications

Bore Diameter:	110 mm
Cage Material:	Brass
Closure Type:	Open
Contact Angle:	35 deg
Load Capacity:	236000 N Dynamic/290000 N Static
Maximum Speed:	4400 rpm
Number of Rows:	2
Outside Diameter:	200 mm
Series:	32 Series
Temperature Rating:	-30 to 150 deg C
Width:	69.8 mm
