3224FT1 LBB

Flex-Block® sleeve bearings are alignable and self-lubricating. Because the bearing material wears gradually under operation, sudden breakdowns and costly maintenance are minimized. The standard bearing insert materials of oil impregnated porous sintered bronze or self-lubricating graphite are widely used for the extreme applications of modern industry.

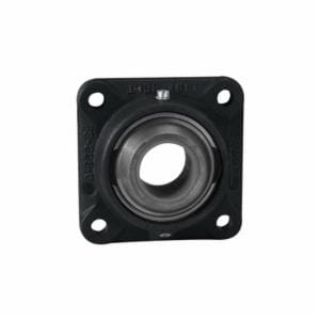

Link-Belt® Flex-Block® Flanged Sleeve Bearing Unit, Non-Expansion Standard Duty, Series: 3200, 1-1/2 in Bore, 4 in Bolt Center-to-Center Length, 4-Bolt Square Flange Mounting, 5-1/8 in Overall Length/Diameter, 2-1/8 in Overall Depth, 5-1/8 in Overall Height, Porous Sintered Bronze Bearing, 65 ft-lb Load, 2500 rpm Maximum, 32 to 200 deg F, Powder Coated
